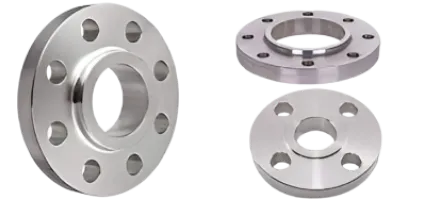

Stainless Steel Sorf Flanges with Hub Manufacturer and Supplier In India
Stainless steel Slip-On Raised Face (SORF) flanges with a hub are a type of pipe flange used in piping systems for connecting pipes or machinery. These flanges have a raised face and a hub, which is a swollen portion on the flange that fits over the pipe's end. Stainless steel SORF flanges with a hub, also known as Slip-On Raised Face flanges with hub, are commonly made from stainless steel materials known for their corrosion resistance and durability. These flanges are described by their raised face, which provides a sealing surface for gaskets, and a hub, which fits over the pipe's end. They are usually connected to the pipe by welding the hub to the pipe. The applications are general piping systems, water treatment plants, chemical and petrochemical industries, power generation and many more.
Naysha Steel specializes in manufacturing and supplying Stainless Steel SORF (Slip-On Raised Face) flanges with
hub in Mumbai, India. These stainless steel 321 pipe flanges offer easy installation, as they slip onto the pipe and are then welded in place.
Made from highest-quality stainless steel, we, at Naysha Steel provide SORF flanges with hub that have excellent toughness and are corrosion-proof. With a complete guarantee to quality, reliability and customer
satisfaction, we are a trusted and dependable manufacturer and supplier of stainless steel flanges for various industrial uses
and applications.
Types of Stainless Steel Sorf Flanges with Hub
We, at Naysha Steel, offer various types of stainless steel SORF (Slip-On Raised Face) flanges with hub.
Here are a few common types:
- Standard SORF Flanges with Hub: Our traditional stainless steel slip-on flanges with a raised
face and a hub, allowing easy alignment and welding to the pipe.
- Weld Neck SORF Flanges with Hub: Our SORF flanges have a longer neck that extends beyond the
pipe, providing additional strength and support. These flanges are ideal for high-pressure and
high-temperature applications, offering great strength and toughness.
- Socket Weld SORF Flanges with Hub: Our flanges have a socket weld connection instead of
a butt weld. They are designed for smaller pipe sizes and provide a more compact and safe
joint, suitable for applications where there is limited space.
- Threaded SORF Flanges with Hub: Our flanges have internal threads to match the pipe's
external threads, allowing for easy setup without welding.
- Lap Joint SORF Flanges with Hub: Our stainless steel SORF flanges have a flat face and a hub, and they are
typically used associated with a stub end.
Get an estimate within 10 minutes!
Features of Stainless Steel Sorf Flanges with Hubs
- Stainless Steel SORF flanges with hubs offer easy installation as they can slip onto the pipe and are then
welded in place, reducing the joining time.
- Our Slip-On Raised Face flanges provide a safe connection that is leak-proof when properly welded to the pipe,
ensuring the stability of the joint.
- The raised face design of the flange improves sealing capability by providing a larger contact
area, reducing the risk of leakage.
- The hub on the flange provides a suitable surface for welding, ensuring a strong and solid
connection between the flange and the pipe.
- Made from stainless steel, our SORF flanges display excellent safety from corrosion, making them
suitable for various environments and uses.
- Stainless steel SORF flanges with hubs offer high strength and toughness, capable of
handling high-pressure and high-temperature conditions.
- We have a broad collection of flanges available in various sizes and pressure ratings, making them suitable
for different piping systems and applications.
Size of
Stainless Steel Sorf Flanges with Hub
| Nominal Size |
Outside Diameter
(OD) |
Min. Thickness
(T) |
RF Dia.
(R) |
No. of Bolt Holes |
Diameter of Holes |
Bolt Circle
(BC) |
SO Bore ID
(SB) |
WN Bore ID
(WB) |
Dia. Hub Base
(HB) |
Dia. of Hub Top
(HT) |
SO LTH
(SL) |
WN LTH
(WL) |
| 1⁄2 |
3.50 |
0.38 |
1.38 |
4 |
0.62 |
2.38 |
0.88 |
0.62 |
1.19 |
0.84 |
0.56 |
1.81 |
| 3⁄4 |
3.88 |
0.44 |
1.69 |
4 |
0.62 |
2.75 |
1.09 |
0.82 |
1.50 |
1.05 |
0.56 |
2.00 |
| 1 |
4.25 |
0.50 |
2.00 |
4 |
0.62 |
3.12 |
1.36 |
1.05 |
1.94 |
1.32 |
0.62 |
2.12 |
| 11⁄4 |
4.62 |
0.56 |
2.50 |
4 |
0.62 |
3.50 |
1.70 |
1.38 |
2.31 |
1.66 |
0.75 |
2.19 |
| 11⁄2 |
5.00 |
0.62 |
2.88 |
4 |
0.62 |
3.88 |
1.95 |
1.61 |
2.56 |
1.90 |
0.81 |
2.38 |
| 2 |
6.00 |
0.69 |
3.62 |
4 |
0.75 |
4.75 |
2.44 |
2.07 |
3.06 |
2.38 |
0.94 |
2.44 |
| 21⁄2 |
7.00 |
0.81 |
4.12 |
4 |
0.75 |
5.50 |
2.94 |
2.47 |
3.56 |
2.88 |
1.06 |
2.69 |
| 3 |
7.50 |
0.88 |
5.00 |
4 |
0.75 |
6.00 |
3.57 |
3.07 |
4.25 |
3.50 |
1.12 |
2.69 |
| 31⁄2 |
8.50 |
0.88 |
5.50 |
8 |
0.75 |
7.00 |
4.07 |
3.55 |
4.81 |
4.00 |
1.19 |
2.75 |
| 4 |
9.00 |
0.88 |
6.19 |
8 |
0.75 |
7.50 |
4.57 |
4.03 |
5.31 |
4.50 |
1.25 |
2.94 |
| 5 |
10.00 |
0.88 |
7.31 |
8 |
0.88 |
8.50 |
5.66 |
5.05 |
6.44 |
5.56 |
1.38 |
3.44 |
| 6 |
11.00 |
0.94 |
8.50 |
8 |
0.88 |
9.50 |
6.72 |
6.07 |
7.56 |
6.63 |
1.50 |
3.44 |
| 8 |
13.50 |
1.06 |
10.62 |
8 |
0.88 |
11.75 |
8.72 |
7.98 |
9.69 |
8.63 |
1.69 |
3.94 |
| 10 |
16.00 |
1.12 |
12.75 |
12 |
1.00 |
14.25 |
10.88 |
10.02 |
12.00 |
10.75 |
1.88 |
3.94 |
| 12 |
19.00 |
1.19 |
15.00 |
12 |
1.00 |
17.00 |
12.88 |
12.00 |
14.38 |
12.75 |
2.12 |
4.44 |
| 14 |
21.00 |
1.31 |
16.25 |
12 |
1.12 |
18.75 |
14.14 |
13.25 |
15.75 |
14.00 |
2.19 |
4.94 |
| 16 |
23.50 |
1.38 |
18.50 |
16 |
1.12 |
21.25 |
16.16 |
15.25 |
18.00 |
16.00 |
2.44 |
4.94 |
| 18 |
25.00 |
1.50 |
21.00 |
16 |
1.25 |
22.75 |
18.18 |
17.25 |
19.88 |
18.00 |
2.62 |
5.44 |
| 20 |
27.50 |
1.62 |
23.00 |
20 |
1.25 |
25.00 |
20.20 |
19.25 |
22.00 |
20.00 |
2.81 |
5.62 |
| 22 |
29.50 |
1.75 |
25.25 |
20 |
1.38 |
27.25 |
22.22 |
21.25 |
24.25 |
22.00 |
3.07 |
5.82 |
| 24 |
32.00 |
1.81 |
27.25 |
20 |
1.38 |
29.50 |
24.25 |
23.25 |
26.12 |
24.00 |
3.19 |
5.94 |
Uses of Stainless Steel Sorf Flanges with Hubs
We, at Naysha Steel, manufacture and supply Stainless Steel SORF (Slip-On Raised Face) Flanges with hubs that are used largely across oil and gas industry, chemical processing industry, petrochemicals industry, power plants, water treatment industry, food processing industry, etc. We supply flanges that provide safe piping connection that connects various parts of industries.We have raised face duplex stainless steel flanges that have a tight seal, which reduces the risk of leaks. Our stainless steel structure are corrosion-proof, making them perfect for uses involving fluids or gases. We provide the flanges that are capable, strong and tough,thus make them fit in providing effective and controlled transport of fluids.
Quality of Stainless Steels Sorf Flanges with Hubs
Our Stainless Steel SORF (Slip-On Raised Face) Flanges with hubs are known for their unique quality. We, at Naysha Steel, manufacture and supply flanges using highest grade stainless steel, which offer incredible protection against corrosion and is strong enough. We take pride in stating that our stainless steel square flange can handle extreme conditions, high pressure and temperature without settling for their purity. Also, the definite machinery and dimensional accuracy of these flanges guarantee a proper fit and safe connection.
Get an estimate within 10 minutes!
Stainless Steel Sorf Flanges with Hub Manufacturer : Grades & Classes
- Grades 310 stainless steel flange
- Grade stainless steel 316 flanges/stainless steel 316l flanges (also known as marine-grade stainless steel)
- 317l stainless steel flanges
- Grades 321 stainless steel flange/321h stainless steel flanges (stainless steel with titanium stabilization)
- Grade 347 stainless steel flanges/347h stainless steel flanges (stainless steel with columbium stabilization)
- Grade stainless steel 904l flanges (highly corrosion-resistant stainless steel)
- Class 150 (standard pressure rating for flanges)
- Class 300 (medium pressure rating for flanges)
- Class 600 (high pressure rating for flanges)
- Class 900 (higher pressure rating for flanges)
- Class 1500 (very high pressure rating for flanges)
- Class 2500 (extremely high pressure rating for flanges)
Stainless Steel SORF Flanges with Hub Specifications
| Specification Of : |
Stainless Steel SORF Flanges with Hub |
| JIS Standards |
5K, 10K, 40K, 16K 20K 30K, 63K |
| Size Of Bore Diameter Flange |
NPS ≤ 10 |
| Manufacturer Of Standard Dimensions |
EN-1092 Flange, ASME B16.48 Flange, API605 Flange, BS4504 Flange, EN1092 Flange, UNI Flange, ISO Flange, API7S-43 Flange, ANSI/ASME B16.5 Flange, API7S-15 Flange, MSS S44 Flange, IS 2062 Flange, ASME B16.36 Flange, DIN Flange, AWWA C207 Flange, B16.47 Series A & B Flange, BS1560-3.1 Flange, ISO70051 Flange, API Flange.
|
| Minimum Pressure |
150# To 2500# |
| Flange Face Type |
Raised Face, Groove And Small Tongue Groove, RTJ, Flat Face, Large Tongue & Large Male-Female And Small Male-Female, Lap-Joint Face. |
| Top Six Type Of Flange |
Threaded Flange, Lap Joint Flange, Socket-Weld Flange, Blind Flange, Slip-On Flange, Weld Neck Flange
|
| Standard Materials |
Duplex Steel & Super Duplex Steel, Copper Nickel, Wrought Iron, Inconel, Mild Steel, Stainless Steel, Hastelloy, Cast Iron, Alloy Steel, Carbon Steel.
|
| Thickness Length |
NPS ≤ 18
|
| Size |
(1/2") To (48")
|
| Manufacturing Process |
Forged/ Machined/ Heat Treated
|
| Other Type Of Flange |
Forged/ Plate/ Threaded
|
| Application |
Oil And Gas Industry
Power Plants Industry
Food Processing And Manufacturing
Waterworks Systems
Fossil Fuel Power Plants
Nuclear Power Application
Municipal Pipe Systems
|
Please find below our manufacturing and Sales network below: (Contact us for detailed information for your nearest branches)
- Stainless Steel Sorf Flanges with Hub manufacturer and contractor in Hyderabad
- Stainless Steel Sorf Flanges with Hub manufacturer and supplier in Chennai
- Stainless Steel Sorf Flanges with Hub manufacturer and stockists in Pune
- Stainless Steel Sorf Flanges with Hub manufacturer and dealer in Faridabad
- Stainless Steel Sorf Flanges with Hub manufacturer and warehousing in Chandigarh
- Stainless Steel Sorf Flanges with Hub manufacturer and wholesalor in Delhi
- Stainless Steel Sorf Flanges with Hub manufacturer and trader in Coimbatore
- Stainless Steel Sorf Flanges with Hub manufacturer and stockholder in Bangalore
Frequently Asked Questions
What is a Stainless Steel SORF Flange with Hub?
A Stainless Steel SORF (Slip-On Raised Face) Flange with Hub is a type of pipe flange that features a raised face for better sealing and a hub that provides reinforcement and alignment to the pipe. It is designed for slip-on installation.
What are the advantages of using Stainless Steel SORF Flanges with Hub?
Various advantages of Stainless Steel SORF Flanges with Hub are ease of installation, leak resistance and its hub provides additional strength and helps align the flange with the pipe.
Are the metals products manufacture and supplied by Naysha Steel, totally cost effective?
All of our products are made from premium quality and are very cost effective, which can fit in your budget. For further details check all the products on our website.
Can we see the products in person before placing the order?
Sure, do visit us at Naysha Steel and get an excellent shopping experience. Our address is mentioned on our website.
Industries served by Stainless Steel Sorf Flanges with Hub
In the oil and gas industry, blind Alloy Steel flanges are used in pipelines, storage tanks, and offshore platforms. They are employed for closing off openings during maintenance, repair, or when a branch connection is not required. Petrochemical plants utilize blind Alloy Steel flanges in equipment such as reactors, distillation columns, and storage vessels. These flanges provide a secure and leak-proof seal when closing off unused openings or isolating sections of the process.
Oil and Gas Industries
The oil and gas industry includes a wide range of from drilling and
production to refining and marketing. Some of the major players in this
include oil and gas companies, service providers, equipment.
Petroleum Industries
In the drilling process, stainless steel is used to make drill bits, pipes, and other
equipment that must withstand high pressures and temperatures. Stainless steel is
also used to make pumps, valves, and fittings for the transportation.
Shipbuilding in India
In storage applications, stainless steel is used to make tanks and containers that
can safely store corrosive and hazardous chemicals. It is also used in piping
systems for chemical transfer and distribution chemical industry.
Marking & Pricing
Products are packaged to ensure that there is no damage during of goods transport. In case of exports, standard export packaging is done with utmost care in wooden covering or boxing. All products are marked with Grade, Lot No, Size, Degree and our trade mark. On special requests we can also, make
customized marking on our products.
Quality Assurance
At Naysha Steel, all fittings and flanges are subject to strict inspection at each and every stage of the production process, from starting material
purchasing to product dispatch. They are visually examined for compliance to ASTM, ASME, MSS, DIN, EN, and JIS codes and standards.
Upon request, official certified Inspection Agencies can be called in to witness the material reports, dimensions and quality compliance
of products.
Test Certificates: Manufacturer Test Certificate as per EN 10204 / 3.1B Raw Materials Certificate, 100% Radiography Test Report, Third
Party Inspection Report
